Vision Partners has provided surface control systems for the control of, among other things:
- Scratch detection metal stainless steel plates
- Breaker inspection kitchen doors
- Check 6-side of a package for surface abnormalities

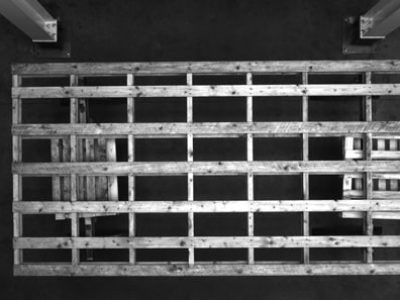

- Dimensions and surface condition of wood panels
- Inspecting bituminous waterproofing
- Towels on soiling
- Fold & fold detection paper packaging
- Pleat detection in back of carpet tiles
- Adhesive distribution backing linoleum rolls
- Surface condition of aircraft parts
- Bottom cardboard packaging inspection
Vision Partners' surface inspection solutions are modular and consist of the following components
1. Image acquisition
- The desired measurement accuracy is determined by the chosen camera architecture (area-scan versus line-scan), LED illumination technology and sensor resolution.
- Depending on the number of cameras used, properties can be checked from different sides
Number of side cameras
Inspection of one side (e.g., top)
Inspection of 2 sides (e.g. top and bottom)
Inspection of 4 or 6 sides of an object (e.g., a box)
2. Image processing
- Depending on the desired surface inspection, various image processing technologies can be applied including artificial intelligence (neural networks) that can be used to reliably check "natural" products (such as, for example, wood, carpet or roofing) for abnormalities.
- Technology applicable in existing production lines without conversion (retro-fit).
- Suitable for high production line speeds.
- Suitable for a high degree of diversity of products.
4. Industrial control cabinet
- Industrial Machine Vision processor
- Electrical connections
- Control panel
- Drawing
5. Turn-key delivery
Vision Partners supplies the inspection systems "turn-key," including, among other things
- High-resolution area-scan or line-scan camera
- LED lighting
- Industrial control cabinet with touch screen
- (Optional) encoder and/or trigger sensor
- Inspection software
- Installation and training
- Service & Maintenance Contract
